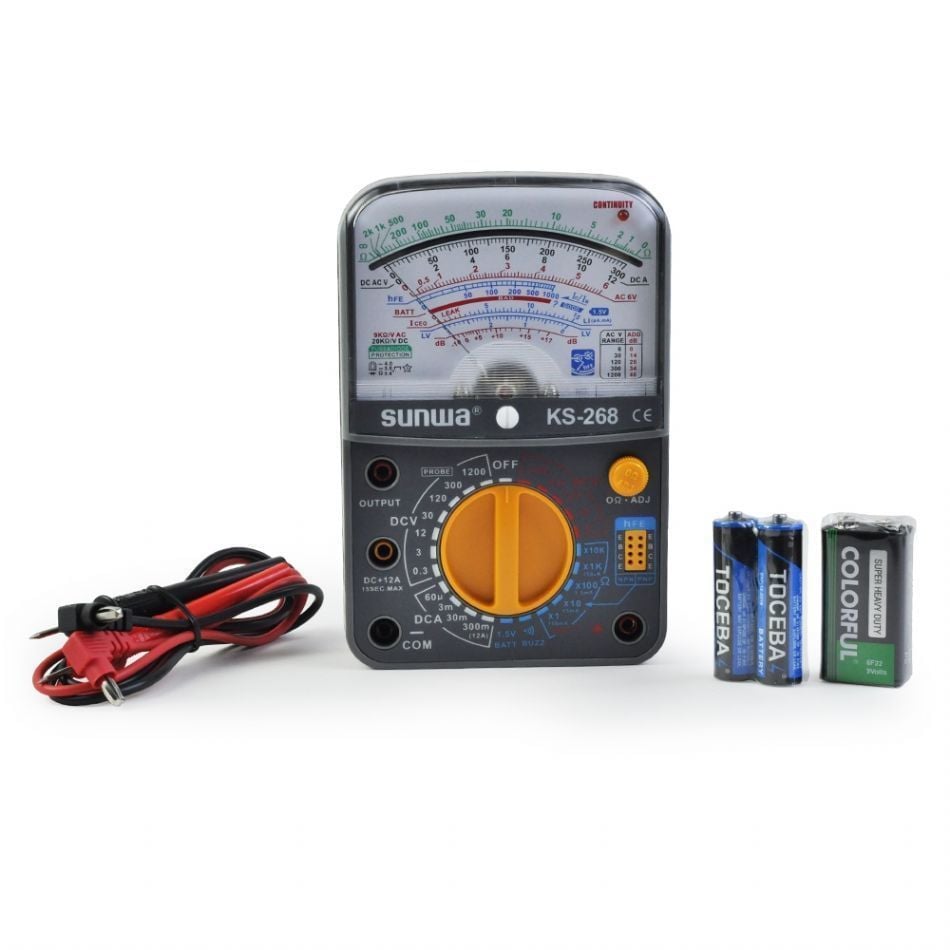

Sunwa Ks 268 Analog Multimetre Ölçü Aleti

Measurement ranges

Accuracy

Remarks

DCV

0~0.3~3~12~12~300~1200V

±3% F.S.

4Kohm/V

ACV

0~6~30~120~300~1200V

±4% F.S.

4Kohm/V

DCA

0~60u~3~30~300mA/12A

±3% F.S. 12A ±5% F.S.

?

×1 ×10 ×100 ×1K ×10K

±3% arc

Decibel

-20dB~ +22dB

hFE

0-1000

Battery test

1.5V

LED

With LED indication and dB test functions

Buzz

Buzz at between 0 and about 100?

Fuse

?5×20mm (250V/0.5A)

Dimension

125×85×32mm

Weight

175g(including battery)

Operating conditions

0-40 ºC , 25%-80%RH

Power source

1.5V(R6) 2 pcs , 9V(6F22) 1 pcs

Packaging parameters

MEAS

50.5×33×28.5cm
